WATER CLOSET ACCESSORIES
B3800E-B4900

Product Name: Adjustable WDI Fitting B3800E & B4900
Product Range: WATER CLOSET ACCESSORIES
Product Overview
Type : Patented pilot pin & seal
Standard configuration:
Connector of G1/2
Product height adjustable range: 204 - 330mm
The height can be adjusted to fit that of toilet tank: the highest after being heightened is 380 and the lowest 204

Optional configuration:
Plastic connector of 15/16" and brass connector of G3/8
Flow Regulator: For high water pressure areas
Plug adapter: Refill range: 0.31%, For toilets that need refill water
The height can be adjusted to fit that of toilet tank: the highest after being heightened is 380 and the lowest 204

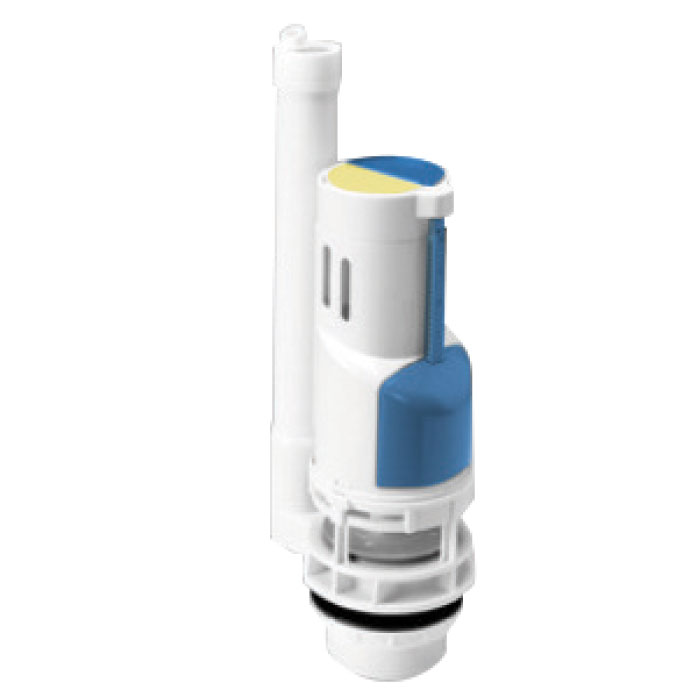

Barrel-style Dual Flush Valve
Standard configuration:
Fixed overflow
Adjustable partial flush range: 0 -155mm
Adjustable full flush range: 0 - 30mm
For tiolets with tank height of 240 - 370mm
For full flush, about 10mm change in water level for adjustment level; for partial flush, about 3mm change in water level for adjustment level

Optional configuration:
Adjustable overflow tube
Two-piece toilets: available with a wide variety of spud nuts
One-piece toilets: metal lock
Various push- buttons for selection
For full flush, about 10mm change in water level for adjustment level; for partial flush, about 3mm change in water level for adjustment level

Dimension Diagram 1
Dimension Diagram 2

Specifications
Type : Patented pilot pin & seal
Standard configuration:
Connector of G1/2
Product height adjustable range: 204 - 330mm
The height can be adjusted to fit that of toilet tank: the highest after being heightened is 380 and the lowest 204

Optional configuration:
Plastic connector of 15/16" and brass connector of G3/8
Flow Regulator: For high water pressure areas
Plug adapter: Refill range: 0.31%, For toilets that need refill water
The height can be adjusted to fit that of toilet tank: the highest after being heightened is 380 and the lowest 204

Barrel-style Dual Flush Valve
Standard configuration:
Fixed overflow
Adjustable partial flush range: 0 -155mm
Adjustable full flush range: 0 - 30mm
For tiolets with tank height of 240 - 370mm
For full flush, about 10mm change in water level for adjustment level; for partial flush, about 3mm change in water level for adjustment level

Optional configuration:
Adjustable overflow tube
Two-piece toilets: available with a wide variety of spud nuts
One-piece toilets: metal lock
Various push- buttons for selection
For full flush, about 10mm change in water level for adjustment level; for partial flush, about 3mm change in water level for adjustment level
